openwrt

Setup openwrt

I used this gist:

https://gist.github.com/subrezon/b9aa2014343f934fbf69e579ecfc8da8

Resize disk:

(dont forget to increase the disk size in os):

wget -U "" -O expand-root.sh "https://openwrt.org/_export/code/docs/guide-user/advanced/expand_root?codeblock=0"
. ./expand-root.sh

Reboots acouple of times.

setup netbird (on openwrt)

opkg update
opkg install wiregard-tools
curl -fsSL https://pkgs.netbird.io/install.sh | sh

The openwrt version in the repos is broken and P2P will not work

reverting to slower relay server.

Connect to openwrt

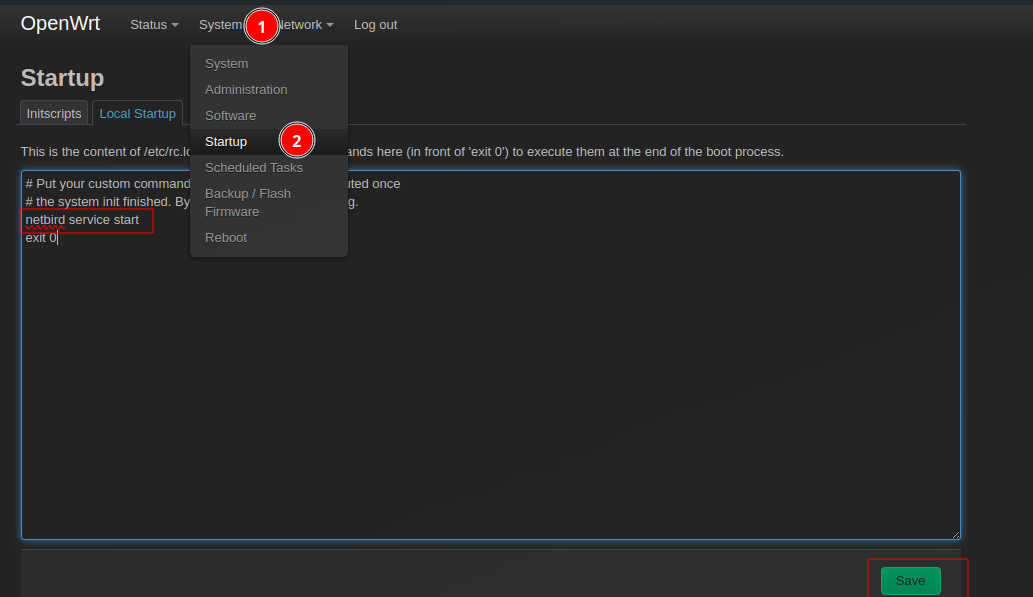

Autostart:

../../../attachments/Pasted image 20240511170149.png

Now you can proceed with the commands from the Netbird UI to add openwrt as a peer.

Fix connection being relayed

Info

Relay in our case is very slow. Our Netbird instance is on a small vm which cant handle all the traffic.
Our kubernetes goals can only be achieved with a fast peer to peer connection with little delay.

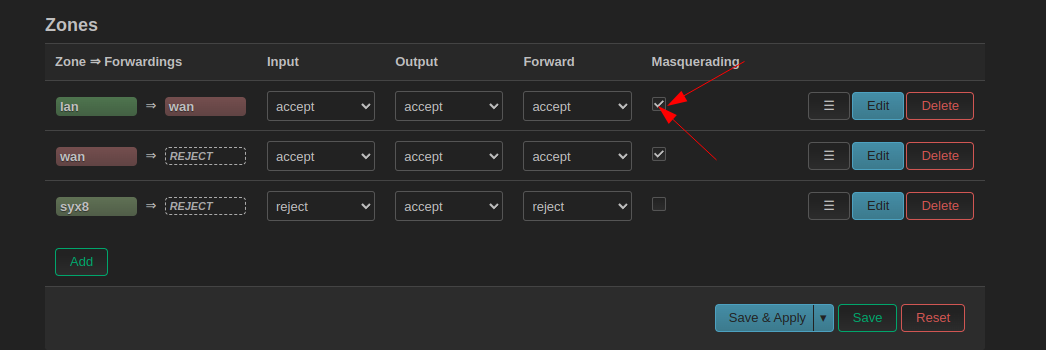

../../../attachments/Pasted image 20240511172321.png (on both ends of course)

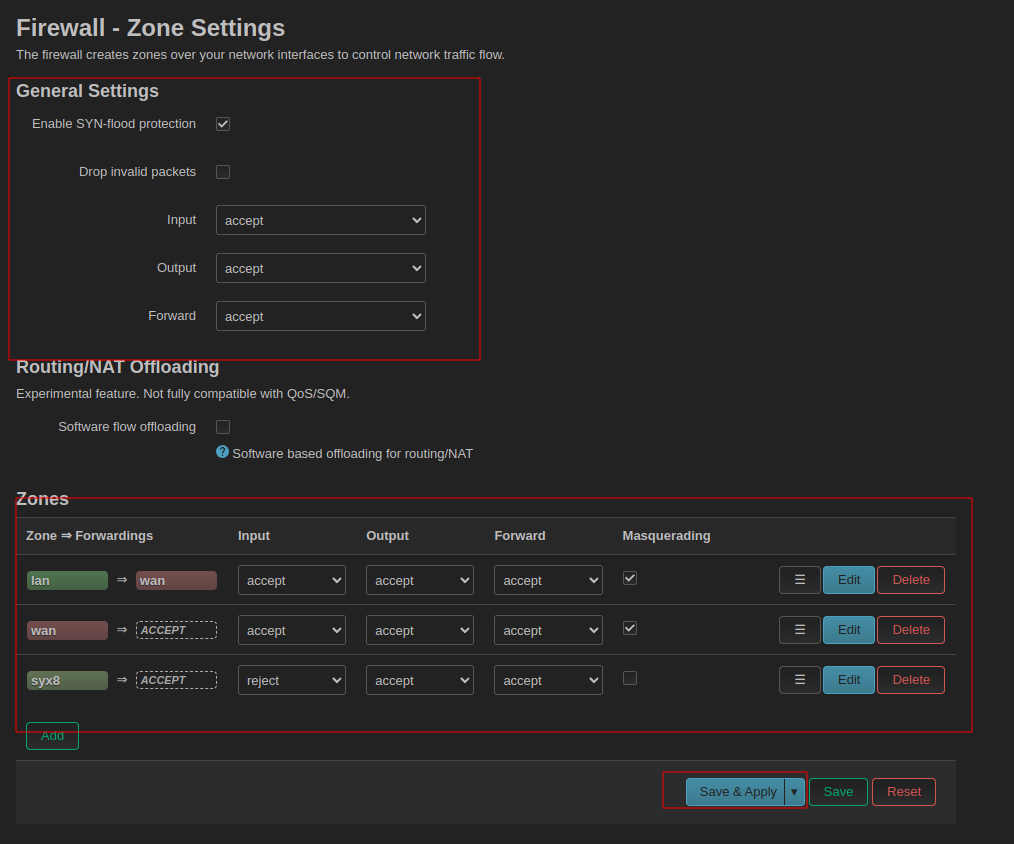

../../../attachments/Pasted image 20240511173716.png

Hardening

I want no vpn peers to be able to access my home networks or other networks besides the 192.168.80.0/24 net:

This can not be done via zones (e.g trying to block syx 8 zone from accessing other interfaces)

Or it only works after rebooting the openwrt

Traffic Rule

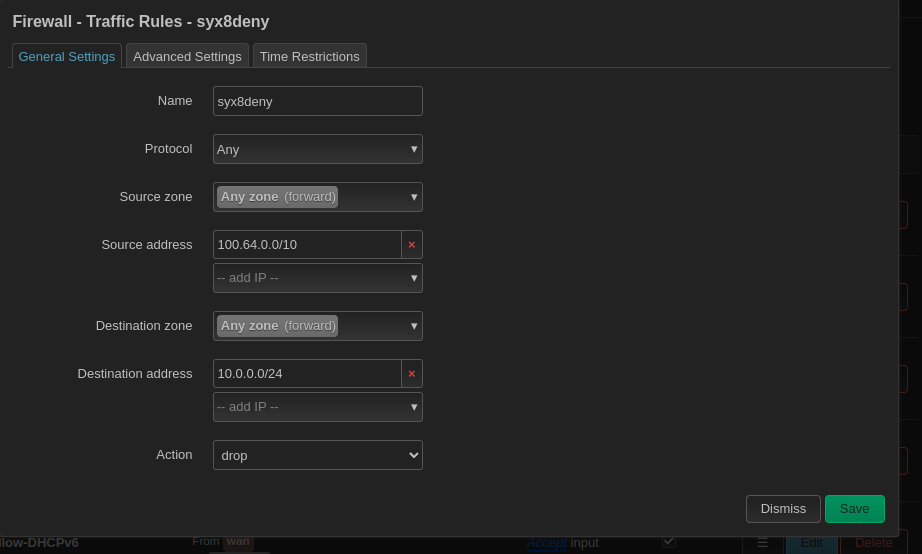

../../../attachments/Pasted image 20240511202210.png
I found this method to be the easiest although i dont know how efficient this is.
This source range is the entire Cgnat block.
Wireguard interfaces get ips from this block. By blocking this, wireguard cant go to another interface.

100.64.0.0/10

Wildcard Dns Record

Just like any DNSMASQ you can create wildcard records by editing /etc/dnsmasq.conf

address=/.docker.phonkd.net/10.0.0.130

and running:

service dnsmasq restart
